High Speed Computerized Multi-needles Lock Stitch Shuttle Jacket Garment Sewing Machine
รายละเอียดสินค้า:
| สถานที่กำเนิด: | จีน， กวางตุ้ง |
| ชื่อแบรนด์: | YUTENG |
| ได้รับการรับรอง: | CE |
| หมายเลขรุ่น: | ซีรีย์ YGB64 |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชุด |
|---|---|
| ราคา: | $25,000.00 - $40,000.00/sets |
| รายละเอียดการบรรจุ: | บรรจุภัณฑ์ส่งออก |
| เงื่อนไขการชำระเงิน: | ที/ที |
|
ข้อมูลรายละเอียด |
|||
| ขนาด (ยาว * กว้าง * สูง): | 3750*1200*1800(มม.) | สภาพเครื่อง: | ใหม่ |
|---|---|---|---|
| การตรวจสอบวิดีโอขาออก: | ที่ให้ไว้ | ระยะเวลาการรับประกัน: | 1 ปี |
| ความเร็วในการเย็บ: | 100-1000 รอบ/นาที | ความหนาของการเย็บสูงสุด: | 25 มม. |
| แรงดันไฟฟ้า: | ตามคำขอ | กำลังทั้งหมด: | 3.5kW |
| น้ำหนักเครื่องจักร: | 4,000 กิโลกรัม | ท่าเรือ: | เซินเจิ้น， จีน |
รายละเอียดสินค้า
Computer Multi-needle Lock Stitch Quilting Machine For Garments Jackets Making
1.Computerized speed governing , max.1000r/min.
2. Needle row driven by aluminum alloy needle bar frame structure. Oil free, sturdy and durable.
3. Saddles and Rollers driven by Servo drive equipment, Spindle adopts frequency conversion control.
4. Saddles using quilting machine with high rigidity design. The stand of fabric separate from saddles, effectively reduce the operating load of motor.
5. Dual clutch device, to solve the synchronization problem of rollers in front and back.
6. Using high-precision and high rigidity Imported screw mandrel.
7. 360 degree free quilting come with unlimited Multi-span quilting independent patterns.
8. Automatic thread-break detection unit.
9. Infrared sensor make sure more safety operation.
10.The machine runs smoothly,low noise, high precision, low thread-break rate and easy to operate.
Machine Technical Parameters :
|
Model |
YGB64-2-3 |
YGB64-3-4/4.5/5/6 |
|
Dimension(L*W*H) |
3750mm*1200mm*1800mm |
3750mm*1200mm*1800mm |
|
Quilting Width |
1650mm |
1650mm |
|
Needle rows |
2 |
3 |
|
Space between needle rows |
3" inch |
3"+1"/1.5"/2"/3" inch |
|
Space between needle |
25.4mm |
25.4mm |
|
X-axis movement displacement |
203.2mm |
203.2mm |
|
Thickness of quilting |
≤25mm |
≤25mm |
|
Stitch length |
2-12mm |
2-12mm |
|
Speed of operation(m/hour) |
20-160(m/hour) |
20-160(m/hour) |
|
Model of needle |
16#,19# |
16#,19# |
|
Shuttle |
7# /10# |
7# /10# |
|
Quilting Speed(r/min) |
100-1000(RPM) |
100-1000(RPM) |
|
Voltage(AC) |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
380V/50HZ,3-Phase 220V/60HZ,3-Phase |
|
Total power |
3.5KW |
3.5KW |
|
Gross weight |
4000kg |
4000kg |
*Customized model are available to meet client's various needs
Machine Introduction :
It is widely used for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and Wall decoration etc.
Our Advantages:
1.With a maximum sewing speed of 1000 RPM, this machine enables fast and efficient quilting, helping you meet production demands and deadlines.
2.The multi-needle design and adjustable quilting width make this machine suitable for a wide range of quilting applications. It can handle various materials, including garments, bedding covers, textiles, leather, shoes, and more.
3.The machine ensures precise stitch formation and consistent quilting results. It allows for different stitch lengths and offers high accuracy, resulting in high-quality finished products.
4.We provide a one-year warranty for the machine, and our dedicated after-sales service team is available to assist you with any technical support or maintenance needs. We also offer the option of sending overseas engineers to install the machine and provide training.
5.We have our own manufacturing facility, which ensures strict quality control and timely production. Our experienced sales teams and engineers are knowledgeable about the product and can provide expert guidance and support.

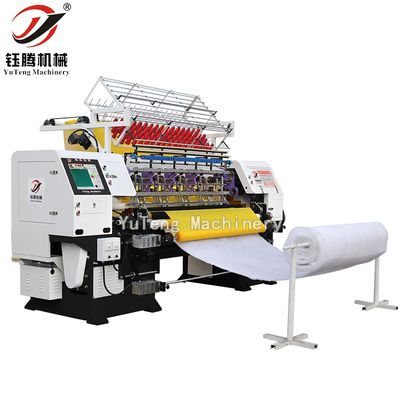

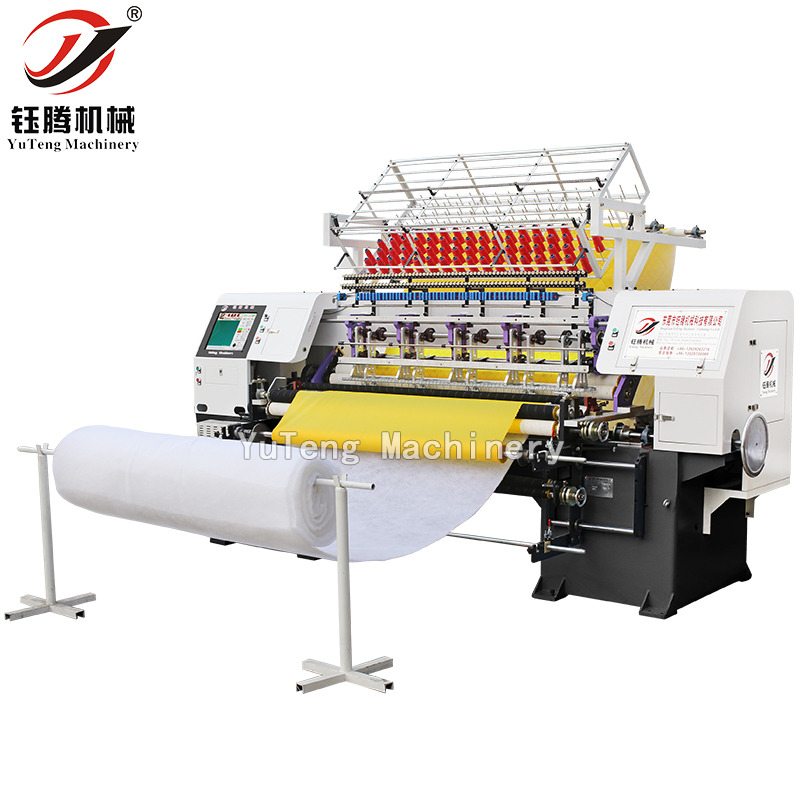

Machine Pictures :
Certificate :
Company pictures :
Services :
1.Warranty: One year.
2.Overseas engineers can be sent to install machines and teach you how to use them.(Fees need negotiable.)
3.We provide quality Before-sales service and after-sales service.
4.We have our own manufacture factory and sales teams and engineers.
5.Visit our Factory.
6.Can provide quilted fabric samples.
