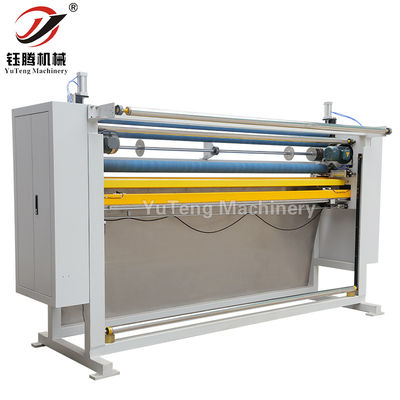

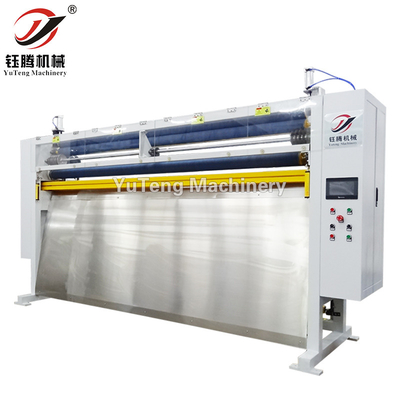

Computerized Panel Cutting Machine For Quilted Textile Fabric Material
รายละเอียดสินค้า:
| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | Yuteng Machinery |
| หมายเลขรุ่น: | ยทม.ซี |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 1SET |
|---|---|
| รายละเอียดการบรรจุ: | ฟิล์มและกระดาษ |
| เงื่อนไขการชำระเงิน: | t/t |
|
ข้อมูลรายละเอียด |
|||
| ชื่อเครื่อง: | เครื่องตัดแผ่นคอมพิวเตอร์ | อุตสาหกรรมที่ใช้บังคับ: | Mattress Fatory， Home Texile Fatory |
|---|---|---|---|
| เงื่อนไข: | ใหม่ | พิมพ์: | อัตโนมัติ |
| ขนาด: | 3700*1100*1850 มม. | น้ำหนัก: | 850 กิโลกรัม |
| การรับประกัน: | หนึ่งปี | แรงดันไฟฟ้า: | 220V/380V |
| ท่าเรือ: | เมืองเซินเจิ้น กวางตุ้ง | ||
รายละเอียดสินค้า
Computerized Panel Cutter Machine YTCM-F
Purpose:
Computerized Fabric Cutting Machine mainly used for cross-cuting,slitting and edge trimming the quilted fabric,and usually works in tandem with the quilting machine and rolling device,but it can also run alone.
Special Features:
1. 7”touch screen,large screen for ease of operation
2. Hidden slitting blades are more convenient and safer
3. Electric controls for length and width of cross cut which make operations more human
4. Feed-in top with article points for pressure rolle.The pressure will be even,and feeding will be leveling off.The slitting cut will be more smooth,especially for the edge trimming of thinner materil
5. Y-dimension with encoder for counting length.It can cut materials length Use the conveyor belt mechanical discharge.It will be convenient to fold material and save artificial.
Technical Parameters:
| Model | YTCM96-F |
| Machine size(L*W*H) | 3700mm*1100mm*1850mm |
| Cutting width | 2450mm(can be customized) |
| Cutting length | Min 30cm-Infinite |
| Cutting speed | Vertical cut 10m/minute,horizontal cut 5 s/cut |
| Machine weight | 850KGS |
| Max power | 2.6KW |
| Voltage | 380V/50HZ ,220V/60HZ, 3-Phase |
|
|---|
Customized Model are available to meet client's various needs.
Company Profile:
The founder of YuTeng Machinery, Mr Xiaoke Hu, who engaged in quilting machinery Industry for over 20 years, proficient in advanced manufacturing technology, unique designs and Innovation. He has won a good reputation in the Industry. With Innovative technology, stable quality and high quality after service, products in his brand sell very good at home and abroad. Leading an outstanding R&D team more than 20 professional engineering and technical personnel and customer service outlets throughout the country, YeTeng always provides clientswith full technical support and perfect afterservice.
Service:
1. Delivery Time: It is generally within 7 to 30 days upon receipt of your 30% deposit, but it depends on the final quantity of the order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4.After-sale services: Good after-sale service provided, we believe in good customer service all the time.
5. Warranty: One year.
Welcome to contact with us,for more information of quilting machine.
